Exide Motorbike Battery Filling


	Motorbike Battery Acid filling instructions

	Batteries should be handled properly. Please always refer to the instruction booklet packed with each battery.

* Some Conventional batteries come with a single-bottle acid pack.

AGM Batteries

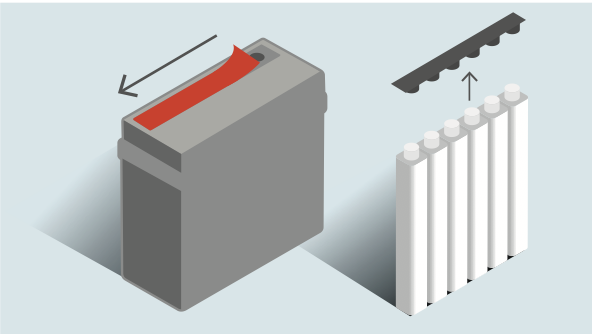

		Prepare Remove the red protective seal from the battery. Remove the lid from the acid pack, keeping the lid and not piercing or peeling the seal.

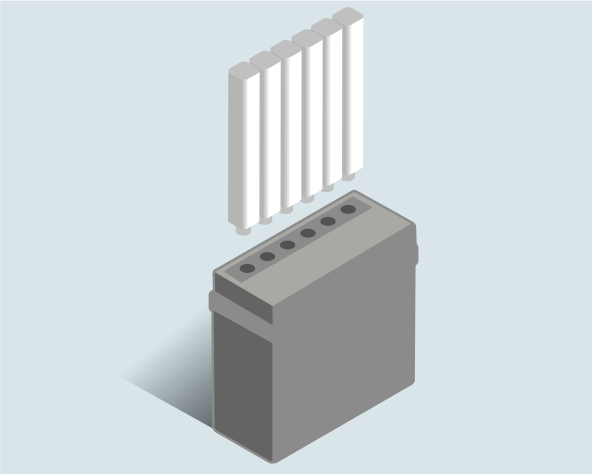

		Align Align the acid pack with the battery cell openings.

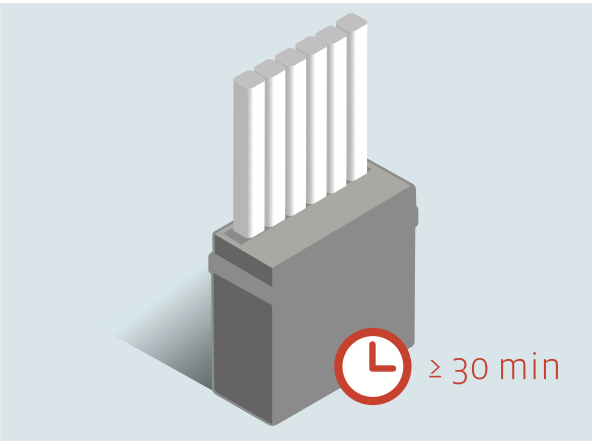

		Fill Press the acid pack gently downward until the seal is self-punctured. The acid will flow into the battery cells. Wait until the acid is fully filled and let the battery rest for at least 30 minutes.

		Dispose Gently rock the acid pack to make sure all acid is dispensed. Carefully remove the acid pack and dispose of safely. Wipe off any spilled acid from the battery.

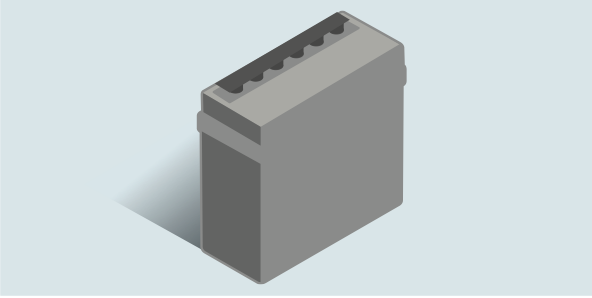

		Cover Cover the battery cell with the lid you removed from the acid bottle pack.

Lid from acid pack


© Exide Technologies	Legal Notice

AGM Batteries

		Prepare Remove the red protective seal from the battery. Remove the lid from the acid pack, keeping the lid and not piercing or peeling the seal.

		Align Align the acid pack with the battery cell openings.

		Fill Press the acid pack gently downward until the seal is self-punctured. The acid will flow into the battery cells. Wait until the acid is fully filled and let the battery rest for at least 30 minutes.

		Dispose Gently rock the acid pack to make sure all acid is dispensed. Carefully remove the acid pack and dispose of safely. Wipe off any spilled acid from the battery.

		Cover Cover the battery cell with the lid you removed from the acid bottle pack.

Lid from acid pack

Conventional Batteries

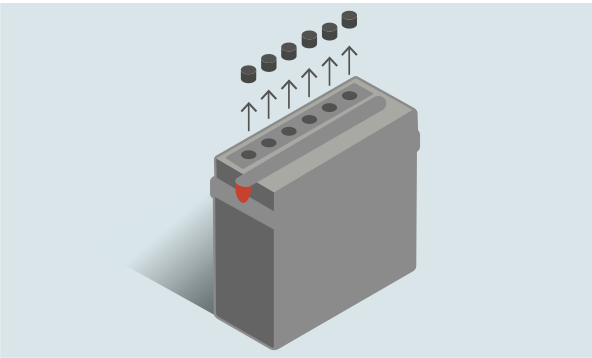

		Prepare Remove the plugs from the battery cell openings on the top and set aside. Remove the red exhaust cap on the side and discard. Do not pierce or peel the seal on the acid pack.*

		Align Align the acid pack with the battery cell openings.

		Fill Press the acid pack gently downward until the seal is self-punctured. The acid will flow into the battery cells. Wait until the acid is fully filled and let the battery rest for at least 30 minutes.

		Dispose Gently rock the acid pack to make sure all acid is dispensed. Carefully remove the acid pack and dispose of safely. Wipe off any spilled acid from the battery.

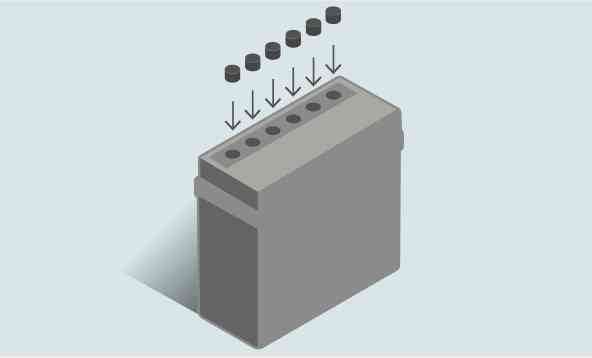

		Cover Put the plugs back on the battery cell carefully and firmly.
